Monochromator for laser pumped
Plasma light source

Hyperchromator-XWS-30
  • Especially suited for DUV and UV
  • Motorized dual grating changer
  • Total wavelength range from DUV to NIR



    Thank you for your request, we will get back to you in a timely manner.

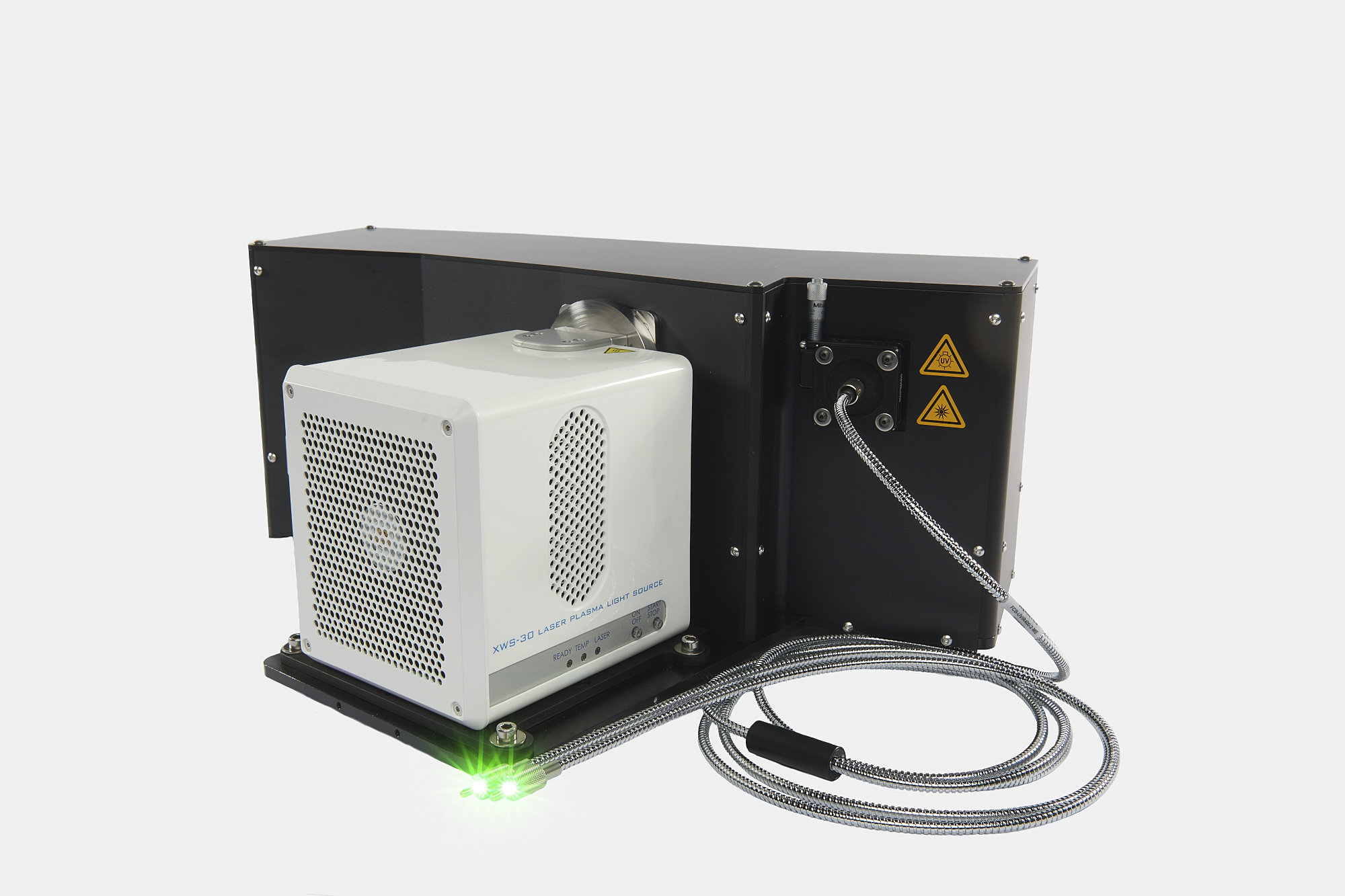

    A monochromator for the laser-pumped light source XWS-30 from ISTEQ

    The Hyperchromator and the XWS-30: A high-performance team

    In order to achieve the best results, a monochromator requires a powerful light source that covers a large spectrum. The laser-pumped XWS-30 light source from the ISTEQ company in Eindhoven (Netherlands) fulfils these demands with extremely high luminance and a wavelength range from 190 bis 2200 nm, making it also the most suitable choice for generating monochromatic light in the DUV and UV range.

    We have jointly developed the Hyperchromator together with our partner Mountain Photonics (Landsberg am Lech, Germany) especially for the XWS-30. In doing so have created a tunable light source that uses the high luminance and the large wavelength range of the laser-pumped light source optimally for the isolation of narrow bandwidth. The motorized dual grating changer of the Hyperchromator and control via a USB interface make work with the Hyperchromator simple and uncomplicated.

    The Hyperchromator is exclusively distributed by Mountain Photonics and their worldwide partner network. We at lightsource.tech will be happy to answer your technical questions and forward your inquiry. Or you may consider contacting Mountain Photonics directly.

    We look forward to your enquiry.

    Call us on:
    +49 (0) 0551/270765-0

    Or by email at:
    info@lightsource.tech

    Wellenlängenbereich
    Wavelength range
    190 – 2200 nm
    Halbwertsbreiten

    Bandwidth

    1 – 20 nm
    Leistung
    Output
    Up to 800 µW at Half-power width 6nm
    HighLight
    HighLight
    Plasma entrance slit
    Datasheet Hyperchromator II

    Technical data sheet Hyperchromator II

    Monochromator for ISTEQ XWS series lightsources



      By submitting this form, I confirm that I have read and understood the privacy policy.

      Thank you for your interest! A link to the data sheet has been send to you.
      Product Specifications:

      Light source

      XWS-30 from ISTEQ directly built-on (other light sources from ISTEQ also available)
      Optical output
      Optical quartz fibers, SMA or FC, 100 – 400 µm core diameter

      Wavelength range

      190 – 2200 nm
      Aperture
      f/1.5

      Bandwidth

      1 – 20 nm FWHM *
      Output
      Typically 60 – 800 µW, corresponding to 10 – 130 µW/nm *
      Reproducibility
      Typically 0.1 nm
      Scanning speed
      40-100 nm/s *
      Software
      Included with GUI
      Interfaces
      USB/RS-232, LabVIEW™, DLL
      * depending on fiber diameter and gratings
      Lightsource Kontakt

      We are happy to help you
      with any questions!

      Dr. Jan Thirase

      Are you interested in this product?

      Sales are through our reliable partner Mountain Photonics.

      Feel free to ask us!

      Hyperchromator – Special monochromator for the XWS-30
      from ISTEQ with a large spectrum from DUV to NIR

      The Hyperchromator is a monochromator that has been specially developed for the laser-pumped light source XWS-30 from ISTEQ. Optimization for your application is achieved by selecting suitable optical gratings. Thanks to the dual grating changer, you can cover the entire wavelength range available.

      The monochromator uses the light very efficiently in order to deliver high output power over the entire spectrum from 190 bis 2200 nm.

      The Hyperchromator does not require an additional entrance slit. It absorbs the light of the XWS-30 loss-free via an opening of up to f/1.5 directly from the plasma of the light source.

      Decoupling via multimode fibers allows easy integration into your system assembly.

      Selection of the wavelength takes place via USB using the software provided or via LabVIEW DLL or RS-232.

      • Tunable wavelength range from 190 to 2200 nm (DUV to NIR)
      • Powerful in the DUV and UV range
      • High performance and luminance from a multimode optical fiber
      • Automatic dual grating changer
      • Including software, compatible with LabVIEW, DLL (via RS-232)
      • Bandwidths from 1 nm to 20 nm
      • Decoupling via multimode fiber
      • Optional: power and wavelength monitoring parallel to the optical output
      • Optional: Installation of other ISTEQ light sources or existing Energetiq EQ-99X lamps
      • Wide range of optical gratings available

      Hyperchromator output spectrum:
      Example of configuration

      Hyperchromator-Leistungsspektrum

      Our highLight: The “plasma entrance slit”

      With conventional monochromators, the light from the light source is first mapped onto an entrance slit. However, this results in a high loss of light – especially in the DUV and UV range.

      On the other hand, our hyperchromator uses the very small and very bright laser-pumped plasma of the XWS-30 directly as an “entrance slit” and thereby significantly reduces the loss of light.

      Hyperchromator

      Other products:

      Fiber-coupled-light-sources-Homogenizer

      Homogenizer
      low-loss and broadband homogenization
